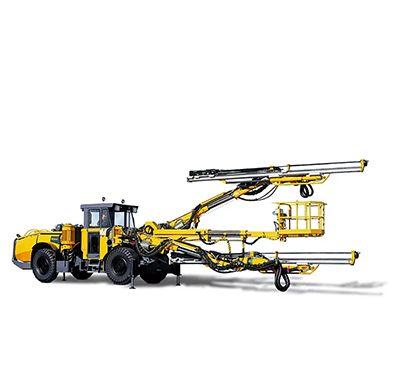

Underground Drilling Equipments – Boomer L2D

    Rock drill – COP 1838HD+

  • Shank adapter : R32/R38/138
  • Height over drill centre : 88 mm
  • Length without shank : 1008 mm
  • Impact power : 18 kW
  • Impact rate : 60 Hz
  • Hydraulic pressure : 230 bar
  • Rotation system : Separate rotation
  • Rotation speed : 0-340 rpm
  • Rotation torque, max : 640 Nm
  • Lub. air consump. at 2 bar : 61/s
  • Water consumption : 1.1 L/s
  • Weight : 170 kg
  • Sound level : <106 dB(A)

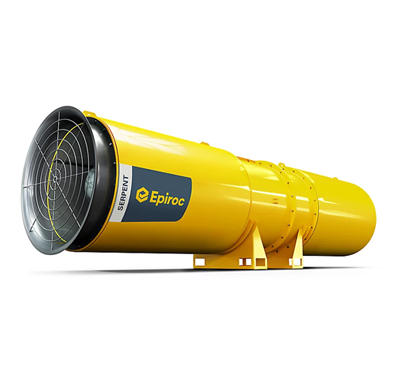

    Underground Drilling Equipments – Ventilation System

    • RangeAVM 90** AVM 112** AVH63 AVH71 AVH80** AVH90 AVH100 AVH125 AVH140 AVH160 AVH180 AVH224
    • Approximate flow rate (m3/s) 8-22 13-32 3-9 4-13 6-20 8-22 10-24 14-42 20-48 22-70 40-120 < 200
    • Approximate flow rate (ft3/min) 16 951-46 615 27 545- 67 804 6 357-19 071 8 476-27 547 12 713-42 377 16 952- 46 618 21 190- 50 856 29 666- 88 998 42 380- 101 712 46 618- 148 330 84 760- 254 280 < 423 800
    • 1-stage (kPa/Inch H2O)* .43-4.1 .2-1.01 1.3-2.2/ 5.2-8.8 1.3-2.3/ 5.2-9.21.3-2.0 3.5-4.3/ 14.0-17.3 3.8-4.4/ 15.3-17.7 1.5-2.6/ 6.0-10.4 1.2-2.2/ 4.8-8.8 1.3-2.2/ 5.2-8.8 1.5-3.5/ 6.0-14.1 1.0-2.0/ 4.0-8.0
    • 2-stage (kPa/Inch H2O)*– – 2.5-4.5/ 10.0-18.1 2.6-4.6/ 10.4-18.5 – 7.0-8.6/ 28.1-34.5 7.3-8.7/ 29.3-34.9 2.9-5.1/ 11.6-20.5 2.3-4.3/ 9.2-17.3 2.5-4.3/ 10.0-17.3 3.0-7.0/ 12.0-28.1 1.5-4.0/ 6.0-16.1
    • 3-stage (kPa/Inch H2O)* – – 4.0-6.5/ 16.1-26.1 4.1-6.6/ 16.5-26.5 – 10.1-12.5/ 40.5-50.2 10.3-12.6/ 41.4-50.6 4.5-7.7/ 18.1-30.9 3.5-6.4/ 14.1-25.7 3.8-6.4/ 15.3-25.7 5.0-10.3/ 20.1-41.4 2.0-5.7/ 8.0-22.9
    • 4-stage (kPa/Inch H2O)* – – 5.0-7.5/ 20.1-30.1 5.2-8.5/ 20.9-34.1 – 12.8-16.0/ 51.4-64.2 12.9-16.2/ 51.8-65.0 6.0-9.5/ 24.1-38.1 4.6-9.5/ 18.5-38.1 5.1-8.5/ 20.5-34.1 – –
    • Nominal power (50HZ) (kW) 30-37 5.5-30 5.5-30 7.5-37 30-55 37-110 37-110 37-110 37-132 37-200 132-500 110-400
    • Impeller blades (pcs) 8 8 8 8 8 8 8 8 8 10 10 10/12

      03

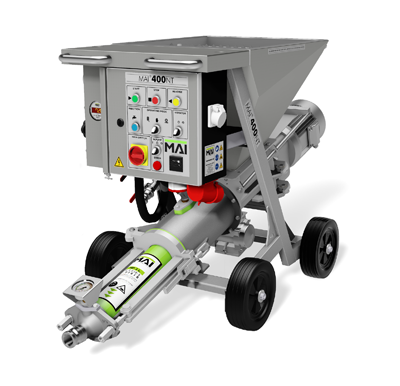

      Underground Drilling Equipments – MAI 400 NT

        TECHNICAL DATA

      • Operating voltage : 400V/3/PE/50Hz
      • Nominal power : 6,2 kW
      • Fusing : 25 A
      • Feed capacity : 6 to 35 l/min
      • L x W x H : 173 x 57 x 96 cm
      • Filling height : 96 cm
        WEIGHTS

      • Transport weight basic unit : 120 kg
      • Pump unit : 27 kg
      • Mixer : 4 kg
      • Driving unit : 57 kg
      • Safety screen with bag opener : 5 kg
      • Total weight : 213 kg

        02

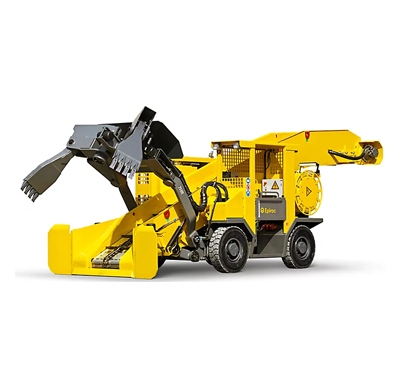

        Underground Drilling Equipments – Haggloader 7 HR and 7 HR-B

          Engine

        • Brand/model Deutz TD 2011 L04i Tier 3/Stage IIIA
        • Power rating at 2 600 rpm 54.7 kW
          Functional data

        • Range Haggloader 7HR Haggloader 7HR-B
        • Tractive effort (4 wheel drive) 7200 kp 7200 kp
        • Loading capacity Approx. 3.5 m3/min Approx. 3 m3/min
        • Weight 14 500 kg 14 500 kg

          Underground Drilling Equipments Haggloader 10HR AND 10 HR-B

            Engine

          • Type Standard Alternative
          • Brand/model Deutz TCD 2012 LO4 2 V, Tier 3/Stage IIIA 4.1 L4, Tier 4 final/EU stage V
          • Power rating at Power rating at 100 kW Approx. 3 m3/min
          • Weight 14 500 kg 105 kW
            Functional data

          • Range Haggloader 10HR Haggloader 10HR-B
          • Tractive effort (4 wheel drive) 10 500 kp 10 500 kp
          • Bending force at the bucket tip – 50 000 N
          • Loading capacity Loading capacity Approx. 4 m3/min
          • Weight21 900 kg21 900 kg
