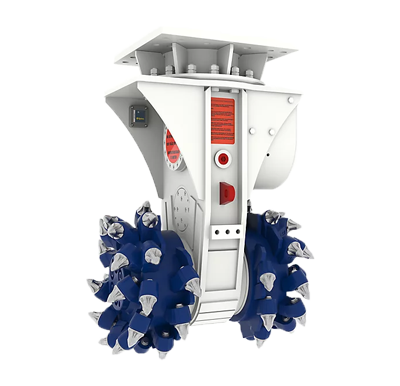

Drum Cutter

  • ER rangeER 40X ER 50X ER 50 ER 100X ER 100 ER 250X ER 250 ER 600
  • Carrier weight class 0.6–2 t 1–3 t 1–3 t 3–7 t 3–7 t 8–15 t 8–15 t 10–18 t
  • Service weight 110 kg 170 kg 200 kg 330 kg 350 kg 520 kg 570 kg 900 kg
  • Product weight 90 kg 130 kg 160 kg 290 kg 310 kg 450 kg 500 kg 820 kg
  • Nominal power 13 kW 18 kW 18 kW 30 kW 30 kW 45 kW 45 kW 65 kW
  • A 495 mm 610 mm 615 mm 805 mm 805 mm 940 mm 965 mm 1,130 mm
  • B 400 mm 400 mm 500 mm 500 mm 610 mm 600 mm 685 mm 795 mm
  • C 225 mm 225 mm 240 mm 370 mm 370 mm 400 mm 450 mm 575 mm
  • Rotational speed 130 rpm 150 rpm 150 rpm 115 rpm 115 rpm 90 rpm 90 rpm 80 rpm
  • Optimum oil flow 17–22 l/min 25–38 l/min 25–38 l/min 52–62 l/min 41–62 l/min 60–85 l/min 60–85 l/min 120–150 l/min
  • Max. torque 960 Nm 1,420 Nm 1,420 Nm 3,000 Nm 3,000 Nm 5,200 Nm 5,200 Nm 10,100 Nm
  • Max. cutting force 8,530 N 12,620 N 11,850 N 16,200 N 16,200 N 26,000 N 23,200 N 35,100 N
  • Pick shaft diameter 11.4 mm 11.4 mm 15 mm 20 mm 20 mm 20 mm 22 mm 25 mm
  • Number of picks 40 pcs 40 pcs 56 pcs 44 pcs 64 pcs 44 pcs 44 pcs 48 pcs
  • Max. oil flow 40 l/min 60 l/min 60 l/min 90 l/min 90 l/min 100 l/min 100 l/min 170 l/min
  • Max. operating pressure 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar

  • ER range ER 650 ER 1500X ER 1500XL ER 1700 ER 2000X ER 2000 ER 3000 ER 5500
  • Carrier weight class 15-25 t 20-40 t 20-40 t 30–50 t 35–50 t 35–50 t 50–70 t 70–125 t
  • Service weight 1200 kg 2000 kg 2100 kg 2450 kg 2700 kg 2900 kg 4000 kg 7000 kg
  • Product weight 1000 kg 1750 kg 1850 kg 2200 kg 2400 kg 2600 kg 3500 kg 6000 kg
  • Nominal power 80 kW 120 kW 120 kW 120 kW 160 kW 160 kW 200 kW 400 kW
  • A 1250 mm 1425 mm 1425 mm 1425 mm 1600 mm 1600 mm 1650 mm 1970 mm
  • B 800 mmv 880 mm 1000 mm 1040 mm 1050 mm 1250 mm 1330 mm 1600 mm
  • C 585 mm 720 mm 720 mm 720 mm 720 mm 720 mm 805 mm 920 mm
  • Rotational speed 80 rpm 75 rpm 75 rpm 72 rpm 65 rpm 65 rpm 53 rpm 48 rpm
  • Optimum oil flow 140-190 l/min 205-300 l/min 205-300 l/min 290-360 l/min 300-390 l/min 300-390 l/min 350-450 l/min 700-950 l/min
  • Max. torque 12,400 Nm 23,400 Nm 23,400 Nm 27,900 Nm 31,500 Nm 31,500 Nm 46,800 Nm 111,500 Nm
  • Max. cutting force 42,400 N 65,000 N 65,000 N 77,500 N 87,500 N 87,500 N 116,300 N 242,400 N
  • Pick shaft diameter 30 mm 30 mm 30 mm 30 mm 30 mm 30 mm 38-30 mm 38 mm
  • Number of picks 44 pcs 44 pcs 48 pcs 56 pcs 56 pcs 56 pcs 64 pcs 68 pcs
  • Max. oil flow 210 l/min 320 l/min 320 l/min 360 l/min 410 l/min 410 l/min 500 l/min 1000 l/min
  • Max. operating pressure 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar 350 bar
