01

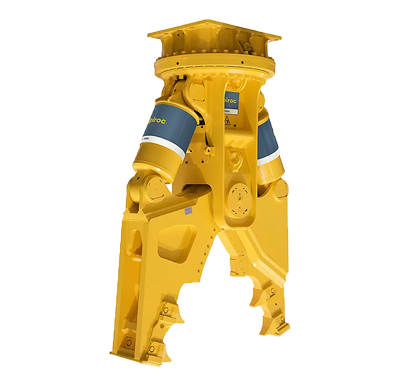

Combi Cutters

  • CC rangeCC 1600CC2300CC3100CC 3700CC 5000CC 7000
  • Carrier 13-23 t20-30 t25-40 t32-50 t45-65 t58-85 t
    Universal (U) version

  • Service Weight1600 kg2300 kg3100 kg3700 kg5050 kg7100kg
  • Product Weight1425 kg2150 kg2880 kg3400 kg4730 kg6450 kg
  • A1862 Mm2159 Mm2341 Mm2420 Mm2960 Mm3100 Mm
  • B700 Mm750 Mm870 Mm1000 Mm1300 Mm1400 Mm
  • C490 Mm660 Mm700 Mm765 Mm1090 Mm1150 Mm
  • D350 Mm350 Mm350 Mm525 Mm525 Mm525 Mm
  • F1197 T257 T430 T510 T620 T830 T
  • F257 T70 T104 T126 T155 T180 T
    Steel cutting (S) version

  • Service Weight1540 Kg2100 Kg2850 Kg3400 Kg4830 Kg6750 Kg
  • Product Weight1340 Kg1950 Kg2635 Kg3110 Kg4510 Kg6000 Kg
  • A1786 mm1983 mm2059 mm2320 mm2800 mm2930 mm
  • B380 Mm415 Mm400 Mm440 Mm720 Mm750 Mm
  • C385 Mm485 Mm465 Mm625 Mm865 Mm900 Mm
  • D380 mm380 mm380 mm525 mm875 mm875 mm
  • F1197 t294 t430 t510 t620 t830 t
  • F261 t87 t145 t147 t198 t205 t
    Universal (U), Steel cutting (S) & Pulverizer (P) version

  • Cycle time (opening & closing)1.3/1.3 Sec1.7/1.6 Sec3.1/2.9 Sec3.0/2.8 Sec3.7/3.2 Sec3.7/3.7 Sec
  • Oil flow rate150-250 l/min150-250 l/min150-250 l/min220-350 l/min350-450 l/min450-550 l/min
  • Max. operating pressure170 Bar350 Bar350 Bar350 Bar350 Bar350 Bar
  • Oil flow rate35-50 l/min35-50 l/min35-50 l/min35-50 l/min45-55 l/min45-55 l/min
  • Max. operating pressure170 bar170 bar170 bar170 bar115 bar115 bar

    02

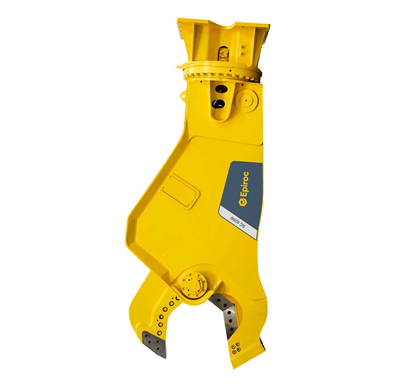

    Steel Cutters

    Steel Cutters are ideal for cutting steel structures at demolition sites or recycling metal girders, sheets and cables at scrap yards. Our steel cutter support operational continuity with minimal operational cost and optimum availability.

    • SC rangeSC 270SC 600SC 2500SC 3600SC 4500SC 6200SC 8300
    • Carrier weight class – boom mounted2-4 t4-6 t16-30 t20-38 t25-55 t30-55 t45-65 t
    • Carrier weight class – stick mounted4-6 t6-9 t21-35 t32-50 t38-60 t50-75 t65-110 t
      Static Version

    • Service Weight––2550 kg3830 kg4480 kg6460 kg8310 kg
    • Product Weight––2300 kg3390 kg4037 kg5780 kg7500 kg
    • A––2235 mm2880 mm3220 mm3555 mm4230 mm
    • B––445 mm607 mm750 mm782 mm947 mm
    • C––416 mm544 mm625 mm 701 mm903 mm
      Rotating Version

    • Service Weight380 kg650 kg2750 kg4030 kg4880 kg6860 kg9060 kg
    • Product Weight340 kg570 kg2500 kg3590 kg4440 kg6180 kg8250 kg
    • A1350 mm1900 mm2596 mm3106 mm3568 mm3903 mm4730 mm
    • B195 mm290 mm445 mm607 mm750 mm782 mm947 mm
    • C200 mm290 mm416 mm 544 mm625 mm701 mm903 mm
      Static & Rotating Version

    • F1102 t138 t532 t664 t813 t955 t1338 t
    • F236 t46 t130 t156 t168 t201 t242 t
    • Cycle time (opening & closing)2.0/2.8 sec1.8/2.4 sec2.9/3.1 sec2.8/2.2 sec3.6/2.9 sec5.3/3.5 sec4.9/3.2 sec
    • Oil flow rate (opening & closing)100 l/min120 l/min240 l/min450 l/min450 l/min450 l/min750 l/min
    • Max. operating pressure (opening & closing)250 bar300 bar350 bar350 bar350 bar350 bar350 bar
    • Oil flow rate (rotation)15 l/min20 l/min50 l/min50 l/min 50 l/min50 l/min50 l/min
    • Max. operating pressure (rotating)100 bar100 bar170 bar170 bar170 bar170 bar170 bar
