01

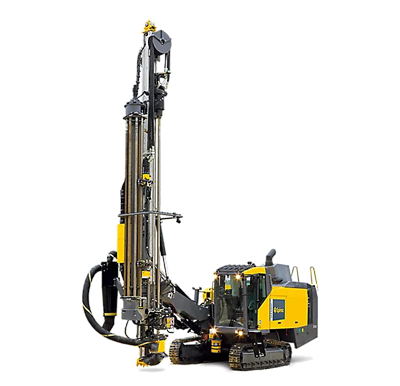

Flexiroc – D50

  • Main application area : Mining ; Quarrying
  • Drilling method : Down-the-hole
  • Hole diameter : 90 mm – 130 mm
  • Cabin : Yes
  • Rock drill/ DTH hammer size : 4″ ; 5″
  • Rotary head : DHR6 H 45 ; DHR6 H 56
  • Maximum hole depth : 45 m
  • Engine : 287 kW
  • Air capacity (FAD) : 295 l/s

    02

    Flexiroc – D55

    • Main application area : Mining ; Quarrying
    • Drilling method : Down-the-hole
    • Hole diameter : 90 mm – 152 mm
    • Cabin : Yes
    • Rock drill/ DTH hammer size : 4″ ; 5″
    • Rotary head : DHR6 H 45 ; DHR6 H 56
    • Maximum hole depth : 45 m
    • Engine : 328 kW
    • Air capacity (FAD) : 354 l/s

      03

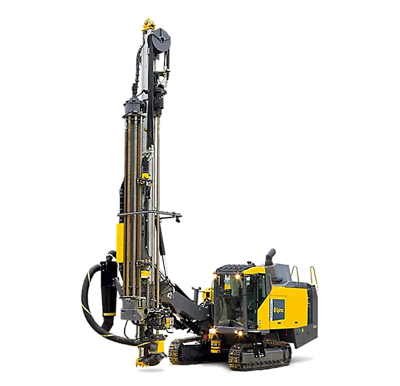

      Flexiroc – D60

      • Main application area : Mining ; Quarrying
      • Drilling method : Down-the-hole
      • Hole diameter : 110 mm – 178 mm
      • Cabin : Yes
      • Rock drill/ DTH hammer size : 4″ ; 5″ ; 6″
      • Rotary head : DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78
      • Maximum hole depth : 55,5 m
      • Engine : 354 kW
      • Air capacity (FAD) : 405 l/s

        04

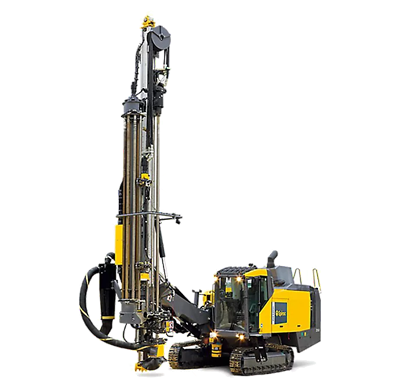

        Flexiroc – D65

        • Main application area : Mining ; Quarrying
        • Drilling method : Down-the-hole
        • Hole diameter : 110 mm – 203 mm
        • Cabin : Yes
        • Rock drill/ DTH hammer size : 4″ ; 5″ ; 6″
        • Rotary head : DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78
        • Maximum hole depth : 55,5 m
        • Engine : 403 kW
        • Air capacity (FAD) : 470 l/s

          05

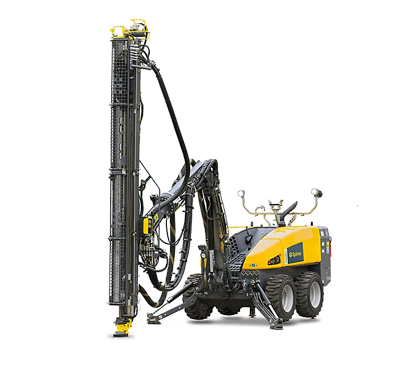

          Flexiroc – T15 R

          • Main application area : Tophammer
          • Hole diameter : 27 mm – 51 mm
          • Cabin : No
          • Rock drill/ DTH hammer size : COP 1022 ; COP 1028
          • Rotary head : N/A
          • Maximum hole depth : 9 m
          • Engine : 48 kW
          • Air capacity (FAD) : 23 l/s

            06

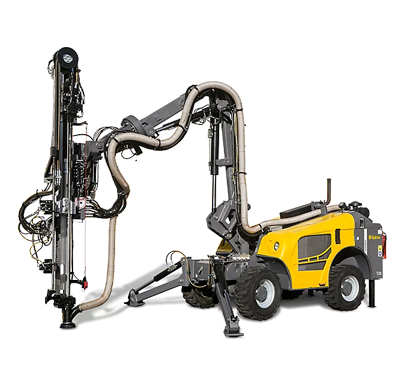

            Flexiroc – T20 R

            • Main application area : Dimension stone industry ; Civil engineering
            • Drilling method : Tophammer
            • Hole diameter : 38 mm – 64 mm
            • Cabin : No
            • Rock drill/ DTH hammer size : COP SC14
            • Rotary head : N/A
            • Maximum hole depth : 6,5 m
            • Engine : 82 kW
            • Air capacity (FAD) : 50 l/s

              07

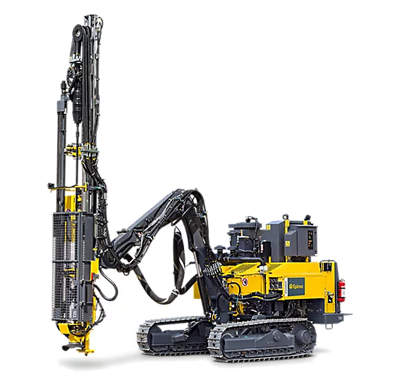

              Flexiroc – T25 R

              • Main application area : Quarrying ; Civil engineering
              • Drilling method : Tophammer
              • Hole diameter : 38 mm – 64 mm
              • Cabin : No
              • Rock drill/ DTH hammer size : COP 1435
              • Rotary head : N/A
              • Maximum hole depth : 15 m
              • Engine : 116 kW
              • Air capacity (FAD) : 80 l/s

                08

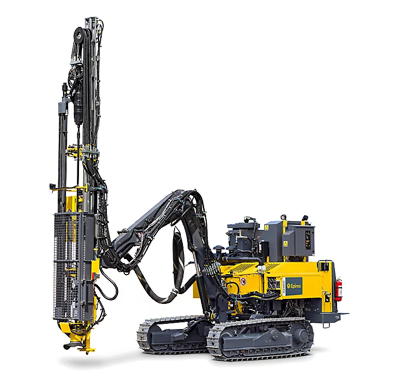

                Flexiroc – T30 R

                • Main application area : Quarrying ; Civil engineering
                • Drilling method : Tophammer
                • Hole diameter : 45 mm – 89 mm
                • Cabin : No
                • Rock drill/ DTH hammer size : COP SC16 ; COP SC19
                • Rotary head : N/A
                • Maximum hole depth : 17,5 m
                • Engine : 116 kW
                • Air capacity (FAD) : 80 l/s

                  09

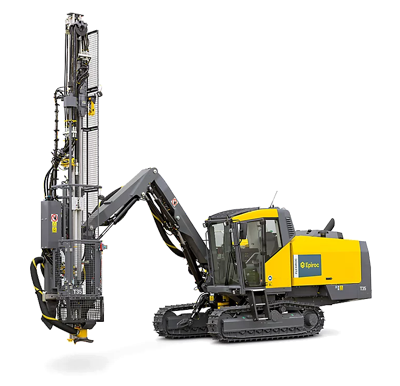

                  Flexiroc – T35

                  • Main application area : Quarrying ; Civil engineering
                  • Drilling method : Tophammer
                  • Hole diameter : 64 mm – 115 mm
                  • Cabin : Yes
                  • Rock drill/ DTH hammer size : COP SC19 ; COP SC25-HE ; COP SC25-HF
                  • Rotary head : N/A
                  • Maximum hole depth : 28 m
                  • Engine : 168 kW
                  • Air capacity (FAD) : 127 l/s

                    11

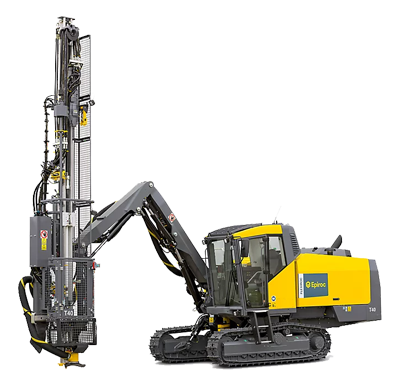

                    Flexiroc – T40

                    • Main application area : Quarrying ; Civil engineering
                    • Drilling method : Tophammer
                    • Hole diameter : 64 mm – 127 mm
                    • Cabin : Yes
                    • Rock drill/ DTH hammer size : COP SC25-HE ; COP SC25-HF
                    • Rotary head : N/A
                    • Maximum hole depth : 28 m
                    • Engine : 168 kW
                    • Air capacity (FAD) : 149 l/s

                      12

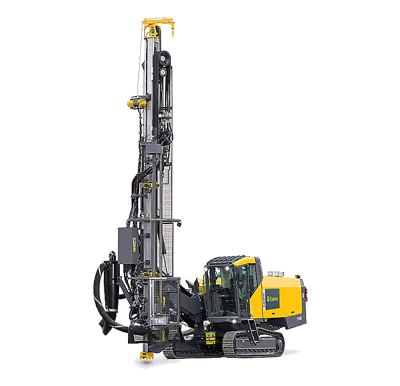

                      Flexiroc – T45

                      • Main application area : Mining ; Quarrying
                      • Drilling method : Tophammer
                      • Hole diameter : 89 mm – 140 mm
                      • Cabin : Yes
                      • Rock drill/ DTH hammer size : COP SC25-HE ; COP 3060
                      • Rotary head : N/A
                      • Maximum hole depth : 35 m
                      • Engine : 250 kW
                      • Air capacity (FAD) : 223 l/s
