01

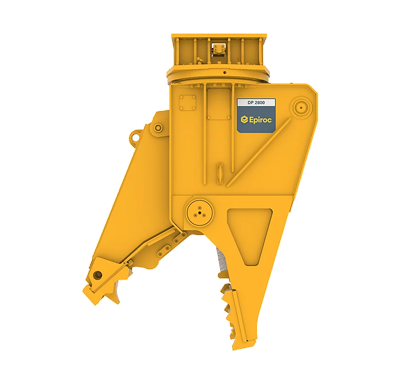

Pulverizers – Demolition

  • DP rangeDP 2000DP 2800
  • Carrier weight class18-27 t25-35 t
  • Service weight2130 kg2930 kg
  • Product weight1990 kg2715 kg
  • A2320 mm2550 mm
  • B82O mm1000 mm
  • C650 mm750 mm
  • D190 mm35O mm
  • X340 mm340 mm
  • Y490 mm500 mm
  • F1265 t320 t
  • F285 t100 t
  • Cycle time (opening & closing)4.0/4.0 sec4.0/4.0 sec
  • Oil flow rate (opening & closing)150—250 l/min250—350 l/min
  • Max. operating pressure (opening & closing)350 bar350 bar
  • Oil flow rate (rotation)35—50 l/min35—50 l/min
  • Max. operating pressure (rotation)170 bar170 bar

    02

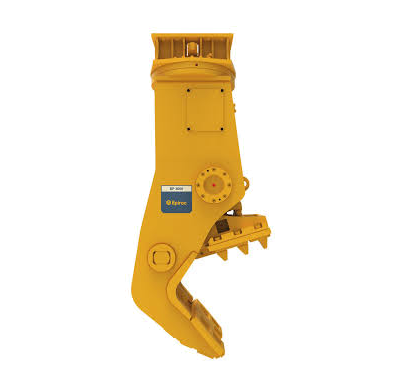

    Pulverizers – Bulk

      Static version

    • BP rangeBP 2050BP 3050
    • Carrier weight class18—27 t25-4O t
    • Service weight2090 kg3100 kg
    • Product weight189O kg275O kg
    • A2240 mm2590 mm
    • B875 mm1020 mm
    • C610 mm650 mm
    • D190 mm190 mm
    • X430 mm590 mm
    • Y55O mm650 mm
      Rotating version

    • Carrier weight class22—27 t30-4O t
    • Service weight2560 kg3790 kg
    • Product weight236O kg344O kg
    • A2630 mm2990 mm
    • B875 mm1020 mm
    • C610 mm650 mm
    • D190 mm190 mm
    • X430 mm590 mm
    • Y55O mm650 mm
      Static and rotating version

    • F129O t365 t
    • F290 t115 t
    • Cycle time (opening/closing)2.9/2.5 sec2.7/2.7 sec
    • Oil flow rate (opening & closing)150—250 l/min150—250 l/min
    • Max. operating pressure (opening & closing)35O bar350 bar
    • Oil flow rate (rotation)35—50 l/min35—50 l/min
    • Max. operating pressure (rotation)17O bar17O bar
