01

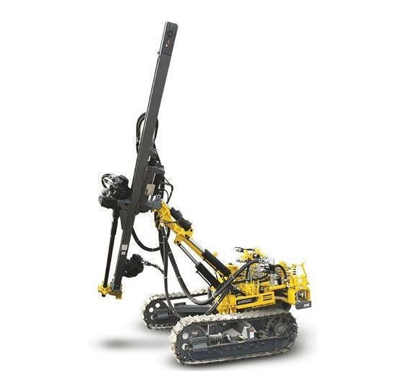

Surface Drilling Rigs Airroc D35 (LM 100)

  • Hole range : 76 – 115 mm
    Carrier

  • Tramming speed, max : 2.5 km/h
  • Track oscillation : ±10°
    Steel feed

  • Feed extension : 750 mm
  • Feed rate, max : 0.3 m/s
  • Feed force, max : 21 kN
  • Tractive pull, max : 15 kN
  • Total length : 5130 mm
  • Travel length : 3565 mm
  • Drill tube size : 64, 76 mm
    Weight

  • AirROC D35 : 2690 kg

    02

    Surface Drilling Rigs Airroc T35/D45/.

      Hole range

    • AirROC T35 : 64 – 102 mm
    • AirROC D45 : 105 – 127 mm
    • AirROC D50 : 105 – 140 mm
      Carrier

    • Tramming speed, max : 3.0 km/h
    • Track oscillation : ±10°
      Steel feed

    • Feed extension : 1219 mm
    • Feed rate, max : 0.25 m/s
    • Feed force, max : 21 kN
    • Tractive pull, max : 14 kN
    • Total length : 5750 mm
    • Travel length : 4250 mm
      Drill tube / Rod size

    • Drill rig : Rod / Pipe size
    • AirROC T35 : 38, 45 mm
    • AirROC D45 : 76 mm
    • AirROC D50 : 76, 89, 102 mm
      Weight

    • AirROC T35 / D45 / D50 : 4800 kg

      03

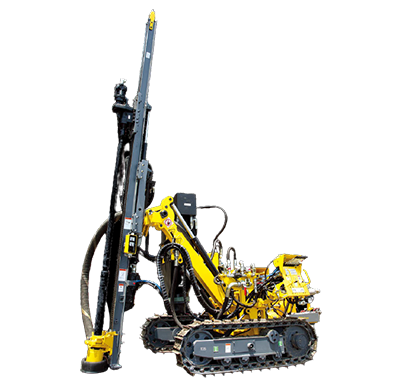

      Surface Drilling Rigs Airroc T25/D40(.

        Hole range

      • AirROC T25, 48 – 76 mm
      • AirROC D40, 89 – 115 mm
        Carrier

      • Tramming speed, max : 2.5 km/h
      • Track oscillation : ±12°
        Steel feedAirROC T25

      • Feed extension : 800 mm
      • Feed rate, max : 0.3 m/s
      • Feed force, max : 8 kN
      • Tractive pull, max : 5 kN
      • Total length : 5450 mm
      • Travel length : 3940 mm
        AirROC D40

      • Feed extension : 800 mm
      • Feed rate, max : 0.3 m/s
      • Feed force, max : 8 kN
      • Tractive pull, max : 5 kN
      • Total length : 5450 mm
      • Travel length : 4009 mm
        Drill tube / Rod size

      • Drill rig : Pipe size
      • AirROC T25 : 32, 38 mm
      • AirROC D40 : 76 mm
        Weight

      • AirROC T25 : 2480 kg
      • AirROC D40 : 2515 kg

        04

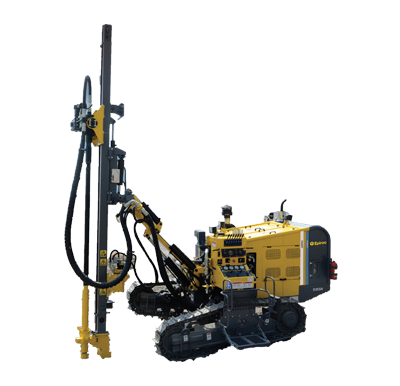

        Airroc – D35 SH

          Technical snapshot

        • Engine Model : Mahindra diesel engine: 38KW/ 50 HP
        • Rod Diameter Length 23/8, 76 mm x 3000 mm
          Starter Rod : 1800mm
        • Feed. Rotation. Tramming: Hydraulic
        • Tractive Pull : 20 KN
        • Rotation Torque : 1200NM
        • Tramming Speed : 3.2 Kmph max
        • Ground Clearance : 284mm
        • Track Oscillation : ± 10
        • Weight : 5000 kg
        • Options : Water mist system
        • Dimension : L: 5519 mm W : 2070 mm H : 2755 m

          05

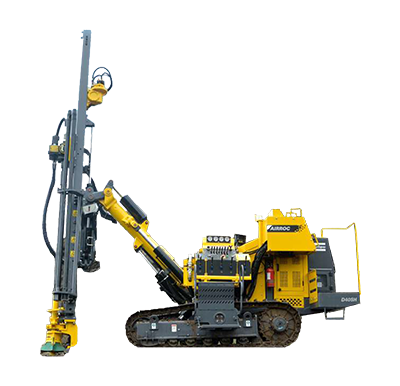

          Airroc – D40 SH

          • Engine Model : Mahindra Diesel Engine : 38KW/ 50 HP
          • Rod Dia Length : 23/8″, 76 mm x 3000 mm
          • Feed, Rotation, Tramming : Hydraulic
          • Tractive Pull : 20 KN
          • Rotation Torque : 1700 NM
          • Tramming Speed : 2.8 Km ph max
          • Ground Clearance : 350mm
          • Track Oscillation : ± 10
          • Weight : 6100 kg
          • Dimension : L : 6200 mm W : 2200 mm H : 2350 mm
          • Recommended Compressor: 450cfm @ 200 Psi or 500 cfm@ 175 psi

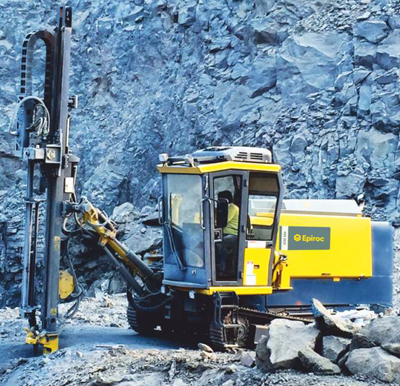

            Airroc – ICM 260

              Main components

            • Crawler-type undercarriage with track oscillation system.
            • Cummins turbo-charged engine
            • High-pressure compressor – XAHS 350 compressor
            • Air-conditioned operator cab
            • Hose chain
            • Hammer – QL4O, MISSION 4.
            • Single section boom system.
            • Chain feed system powered by hydraulic motor
              General

            • Maximum drill Diameter : 102-115 mm
            • Pipe Diameter : 76 mm
            • Pipe Handling rack capacity : 3*3 m drill pipe + 2.5 m starter pipe
