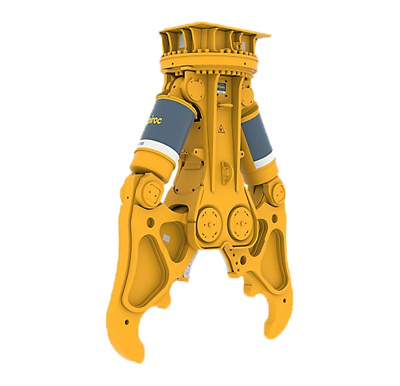

Concrete Buster

  • CB rangeCB 350CB 750CB 950CB 2500
  • Carrier weight class2-8 t7-14 t12-20 t2O-35 t
  • Service weight320 kg730 kg940 kg2600 kg
  • Product weight290 kg617 kg794 kg2370 kg
  • A907 mm1374 mm1700 mm2260 mm
  • B380 mm480 mm680 mm1100 mm
  • C219 mm269 mm324 mm750 mm
  • D90 mm140 mm140 mm240 mm
  • F1199 t236 t312 t360 t
  • F253 t57 t89 t100 t
  • Cycle time (opening/closing)3.8/3.0 sec3.4/2.6 sec5.8/5.0 sec3.8/2.8 sec
  • Oil flow rate (opening/closing)50—90 l/m in90-180 l/m in90-180 l/m in150-250 l/m in
  • Max. operating pressure (opening & closing)300 bar350 bar350 bar350 bar
  • Oil flow rate (rotation)5-10 l/min20-25 l/min20-25 l/min35-50 l/min
  • Max. operating pressure (rotation)170 bar210 bar210 bar170 bar
