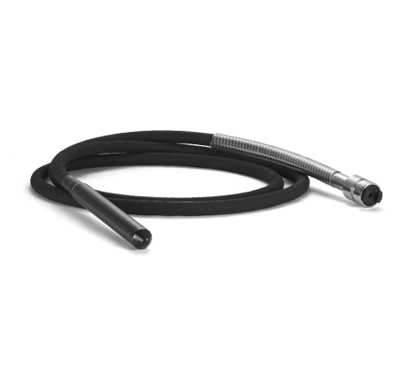

AZ Vibrators

  • MECHANICAL VIBRATORS (PENDULUM TYPE) AZ 56 AZ 46 AZ 36 AZ 26
  • Tube diameter 55 mm 45 mm 35 mm 25 mm
  • Frequency 11300 vpm 12000 vpm 12000 vpm 12000 vpm
  • Hose length 4.8 m 4.8 m 4.8 m 4.8 m
  • Total weight 17 kg 16 kg 11.6 kg 9.5 kg
  • Sound power 90.0 LW dB(A) 87.4 LW dB(A) 82.0 LW dB(A) 77.5 LW dB(A)
  • Vibration value 8.27 m/s2 2.42 m/s2 5.22 m/s2 2.00 m/s2

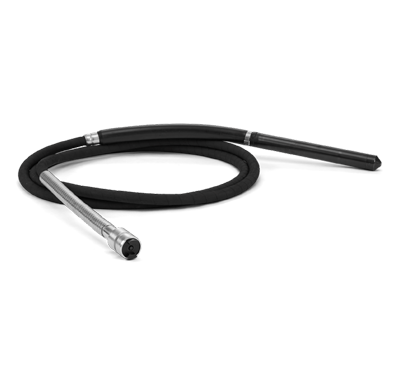

    AA Vibrators

    • MECHANICAL VIBRATORS (PENDULUM TYPE) AA 77 AA 67 AA 47 AA 37 AA 27
    • Tube diameter 75 mm 63 mm 50 mm 39 mm 25 mm
    • Frequency 9200 vpm 10500 vpm 11200 vpm 12000 vpm 12000 vpm
    • Hose length 6 m 6 m 6 m 6 m 6 m
    • Total weight 29 kg 25 kg 23 kg 19 kg 10 kg
    • Sound power 75.7 LW dB(A) 75.8 LW dB(A) 73 LW dB(A) 68 LW dB(A) 69 LW dB(A)
    • Vibration value 3.16 m/s2 2.66 m/s2 3.52 m/s2 1.56 m/s2 2.46 m/s2

      05

      Dry Unit- Diesel Engine (AMD 3300)

      • Fuel:- Diesel
      • Power hp:- 4.4
      • Speed, rpm:- 2900
      • Weight:- 46 kg

        06

        Dry Unit- Electrical Motor (AME 1490 – M/T)

        • Fuel:- Electric
        • Power hp:- 2
        • Speed, rpm:- 2880

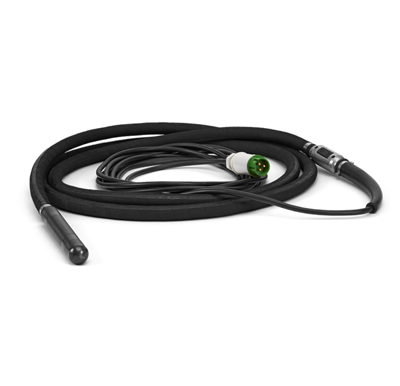

          Vibrastar

          • VIBRASTAR 60 50 40
          • Tube diameter 60 mm 50 mm 40 mm
          • Frequency 12000 vpm 12000 vpm 12000 vpm
          • Voltage 42 V (3-phase) 42 V (3-phase) 42 V (3-phase)
          • Frequency 200 Hz 200 Hz 200 Hz
          • Amperage 11 A 8 A 4 A
          • Hose length 5 m 5 m 5 m
          • Cable length 10 m 10 m 10 m
          • Total weight 15 kg 13 kg 8.4 kg
          • Sound power 84 LW dB(A) 76 LW dB(A) 75 LW dB(A)
          • Vibration value 3.23 m/s2 3.28 m/s2 1.8 m/s2

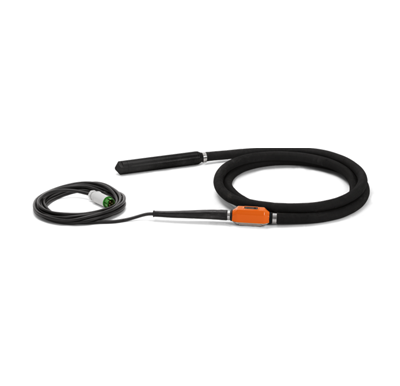

            AX/AXE Vibrators

            • AX/AXE VIBRATORSAX 90AX 65AX 56 -12 MAX 56 -5 MAX 48 – 12 MAX 48 – 5 MAX 40AX 36
            • Tube diameter 90 mm 65 mm 56 mm 56 mm 48 mm 48 mm 40 mm 38 mm
            • Frequency 6000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm
            • Voltage 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase)
            • Frequency 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz
            • Amperage 21 A 19 A 11.7 A 11.7 A 10 A 10 A 4.5 A 6.2 A
            • Hose length 3 m 5 m 12 m 5 m 12 m 5 m 5 m 5 m
            • Cable length 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m
            • Total weight 26.6 kg 18.8 kg N/A 16.1 kg N/A 15.1 kg 13.2 kg 13.1 kg
            • Sound power 76 LW dB(A) 79 LW dB(A) 79 LW dB(A) 79 LW dB(A) 76 LW dB(A) 76 LW dB(A) 78 LW dB(A) 70 LW dB(A)
            • Vibration value 5.06 m/s2 4.62 m/s2 3.66 m/s2 3.66 m/s2 3.53 m/s2 3.53 m/s2 3.81 m/s2 3.81 m/s2

              High Frequancy Vibrator 12

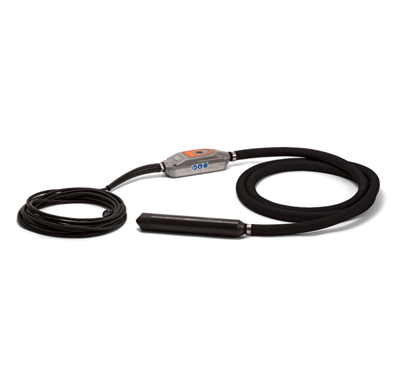

              Smart Vibrators

              • SMART VIBRATORS 65 – 5 M 56 – 5 M 48 – 5 M 40 – 5 M
              • Tube diameter 65 mm 56 mm 48 mm 40 mm
              • Frequency 12000 vpm 12000 vpm 12000 vpm 12000 vpm
              • Voltage 230 V 230 V 230 V 230 V
              • Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
              • Amperage 10 A 6.4 A 4.5 A 2.5 A
              • Hose length 5 m 5 m 5 m 5 m
              • Cable length 15 m 15 m 15 m 15 m
              • Sound power 99 LW dB(A) 94 LW dB(A) 91 LW dB(A) 86 LW dB(A)
              • Vibration value 2.47 m/s2 2.47 m/s2 5.87 m/s2 4.62 m/s2

                09

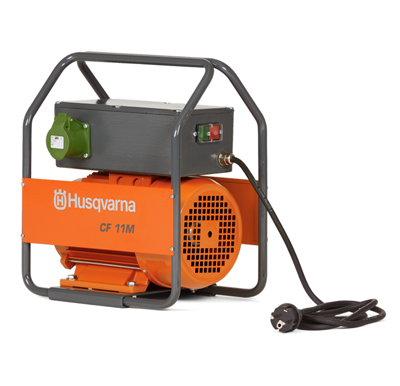

                High Frequency Converter Poker – Dry Unit CF 11

                • Output power:- 0.8 kW
                • Weight:- 18 kg
                • Phases:- 1

                  10

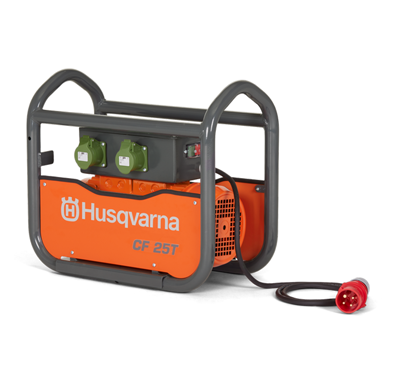

                  High Frequency Converter Poker – Dry Unit CF 25 T

                  • Output power 1.8 kW
                  • Number of phases 1 or 3
                  • Number of Outlets 2
                  • Weight 31 kg

                    11

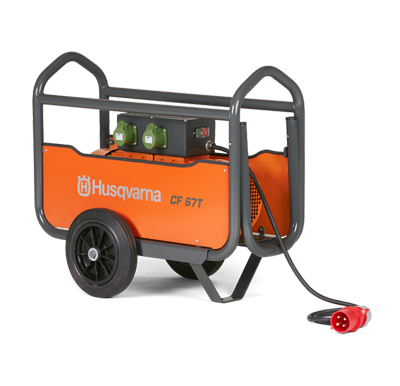

                    High Frequency Converter Poker – Dry Unit CF 67 T

                    • Output power :- 4.7 kW
                    • Weight :- 70 kg
                    • Phases :- 3

                      15

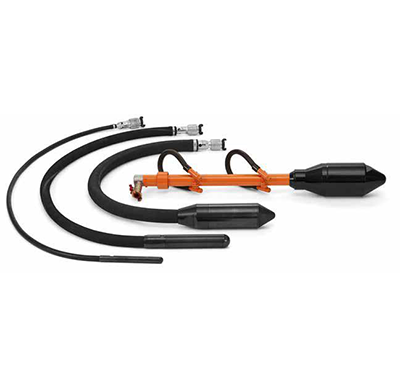

                      Pneumatic Poker

                      • PNEUMATIC VIBRATORS :- AY 157 AY 107 AY 87 AY 77 AY 67 AY 57 AY 47 AY 37 AY 27
                      • Tube diameter, mm :- 155 108 87 77 67 56 47 36 26
                      • Air consumption, m3/min :- 2.7 1.9 1.6 1.3 1 1 0.7 0.46 0.36
                      • Frequency, vpm :- 12000 15000 15900 16000 17500 18000 18000 19000 21000
                      • Hose length, m :- 0.8 1.5 1.5 2 2 2 2 2 2
                      • Total weight, kg :- 28 23 18 17 11 10 7 5 4
