Husqvarna AZ Concrete Vibrator i

AZ Vibrators (Poker)

  • MECHANICAL VIBRATORS (PENDULUM TYPE) AZ 56 AZ 46 AZ 36 AZ 26
  • Tube diameter 55 mm 45 mm 35 mm 25 mm
  • Frequency 11300 vpm 12000 vpm 12000 vpm 12000 vpm
  • Hose length 4.8 m 4.8 m 4.8 m 4.8 m
  • Total weight 17 kg 16 kg 11.6 kg 9.5 kg
  • Sound power 90.0 LW dB(A) 87.4 LW dB(A) 82.0 LW dB(A) 77.5 LW dB(A)
  • Vibration value 8.27 m/s2 2.42 m/s2 5.22 m/s2 2.00 m/s2

    Husqvarna AMD 3300 05

    Drive Unit- Diesel Engine (AMD 3000)

    • Fuel:- Diesel
    • Power hp:- 4.4
    • Speed, rpm:- 2900
    • Weight:- 46 kg

      Husqvarna AMD 3300 1490 – M/. 06

      Drive Unit- Electrical Motor (AME 1490)

      • Fuel:- Electric
      • Power hp:- 2
      • Speed, rpm:- 2880

        Husqvarna Vibrastar

        Vibrastar

        • VIBRASTAR 60 50 40
        • Tube diameter 60 mm 50 mm 40 mm
        • Frequency 12000 vpm 12000 vpm 12000 vpm
        • Voltage 42 V (3-phase) 42 V (3-phase) 42 V (3-phase)
        • Frequency 200 Hz 200 Hz 200 Hz
        • Amperage 11 A 8 A 4 A
        • Hose length 5 m 5 m 5 m
        • Cable length 10 m 10 m 10 m
        • Total weight 15 kg 13 kg 8.4 kg
        • Sound power 84 LW dB(A) 76 LW dB(A) 75 LW dB(A)
        • Vibration value 3.23 m/s2 3.28 m/s2 1.8 m/s2

          Husqvarna AX Concrete Vibrators

          AX Vibrators (POKER)

          • AX/AXE VIBRATORSAX 90AX 65AX 56 -12 MAX 56 -5 MAX 48 – 12 MAX 48 – 5 MAX 40AX 36
          • Tube diameter 90 mm 65 mm 56 mm 56 mm 48 mm 48 mm 40 mm 38 mm
          • Frequency 6000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm 12000 vpm
          • Voltage 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase) 42 V (3-phase)
          • Frequency 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz 200 Hz
          • Amperage 21 A 19 A 11.7 A 11.7 A 10 A 10 A 4.5 A 6.2 A
          • Hose length 3 m 5 m 12 m 5 m 12 m 5 m 5 m 5 m
          • Cable length 10 m 10 m 10 m 10 m 10 m 10 m 10 m 10 m
          • Total weight 26.6 kg 18.8 kg N/A 16.1 kg N/A 15.1 kg 13.2 kg 13.1 kg
          • Sound power 76 LW dB(A) 79 LW dB(A) 79 LW dB(A) 79 LW dB(A) 76 LW dB(A) 76 LW dB(A) 78 LW dB(A) 70 LW dB(A)
          • Vibration value 5.06 m/s2 4.62 m/s2 3.66 m/s2 3.66 m/s2 3.53 m/s2 3.53 m/s2 3.81 m/s2 3.81 m/s2

            Husqvarna Smart Concrete Vibrator 12

            Smart Vibrators (POKER)

            • SMART VIBRATORS 65 – 5 M 56 – 5 M 48 – 5 M 40 – 5 M
            • Tube diameter 65 mm 56 mm 48 mm 40 mm
            • Frequency 12000 vpm 12000 vpm 12000 vpm 12000 vpm
            • Voltage 230 V 230 V 230 V 230 V
            • Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
            • Amperage 10 A 6.4 A 4.5 A 2.5 A
            • Hose length 5 m 5 m 5 m 5 m
            • Cable length 15 m 15 m 15 m 15 m
            • Sound power 99 LW dB(A) 94 LW dB(A) 91 LW dB(A) 86 LW dB(A)
            • Vibration value 2.47 m/s2 2.47 m/s2 5.87 m/s2 4.62 m/s2

              10

              High Frequency Converter Poker – CF 25 T

              • Output power 1.8 kW
              • Number of phases 1 or 3
              • Number of Outlets 2
              • Weight 31 kg

                11

                High Frequency Converter Poker – CF 67 T

                • Output power : 4.7 kW
                • Number of Outlets : 4
                • Weight : 70 kg
                • Phases : 3

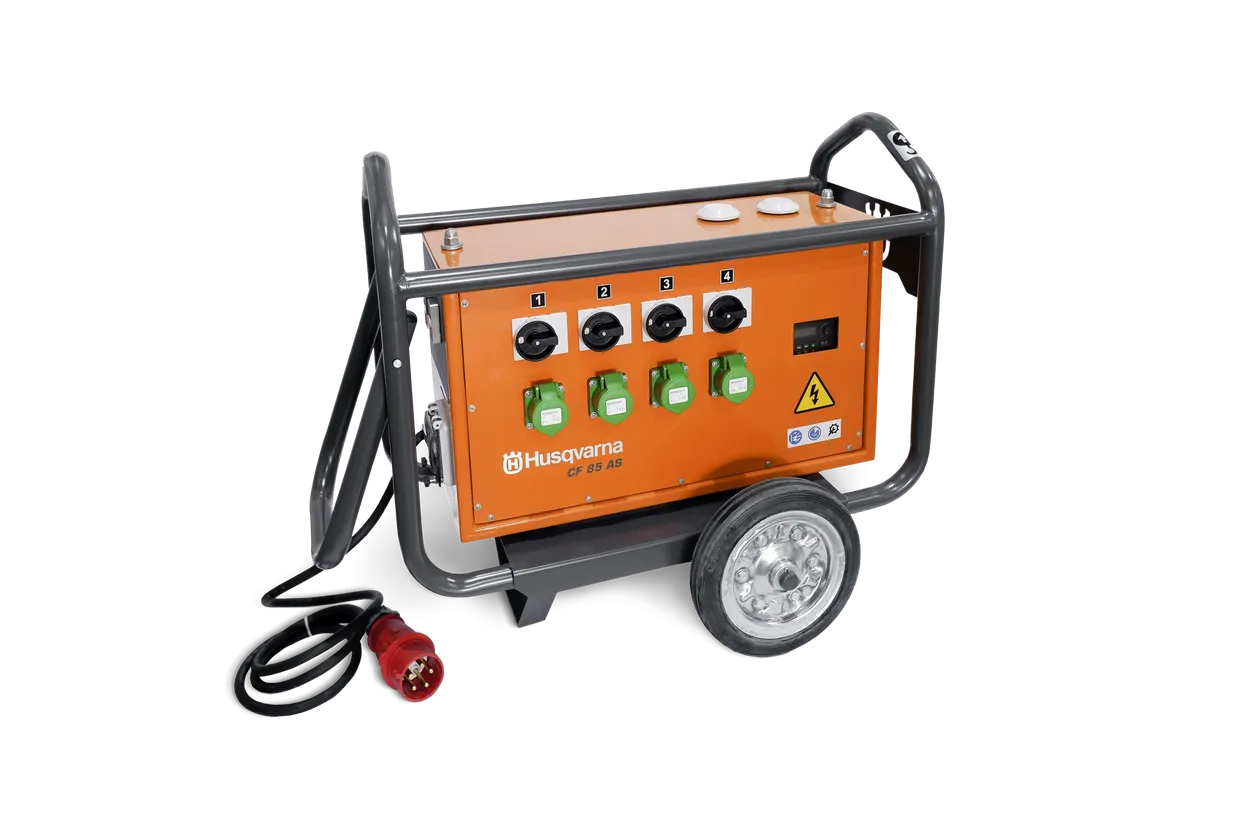

                  Husqvarna High Frequency Converter Poker CF 85 AS Image

                  High Frequency Converter Poker – CF 85 AS

                  • Output power : 6.2 kW
                  • Voltage : 415 V
                  • Number of Outlets : 4
                  • Weight : 81 kg
                  • Phases : 3 ph
