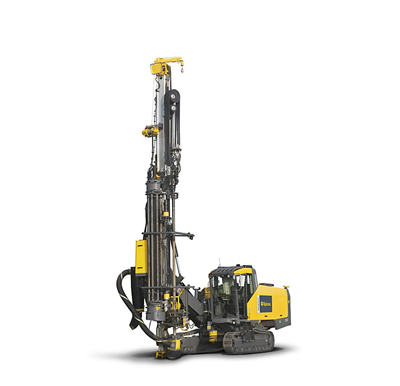

Smartroc – C50

  • Main application area : Mining ; Quarrying
  • Drilling method : COPROD
  • Hole diameter : 90 mm – 140 mm
  • Cabin : Yes
  • Rock drill/ DTH hammer size : COP 3060 CR
  • Maximum hole depth : 36 m
  • Engine : 242 Kw
  • Air capacity (FAD) : 223 l/s

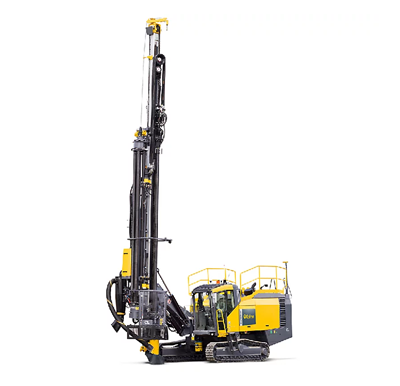

    Smartroc – CL

    • Main application area : Mining
    • Drilling method : COPROD
    • Hole diameter : 115 mm – 216 mm
    • Cabin Yes
    • Rock drill/ DTH hammer size : COP 5060 CR
    • Maximum hole depth : 42,5 m
    • Engine : 328 kW
    • Air capacity (FAD) : 245 l/s

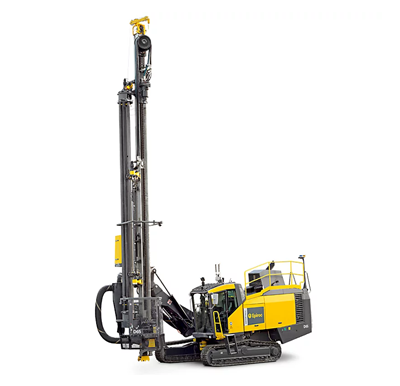

      Smartroc – D50

      • Main application area : Mining ; Quarrying
      • Drilling method : Down-the-hole
      • Hole diameter : 90 mm – 130 mm
      • Cabin : Yes
      • Rock drill/ DTH hammer size : COP 44 Gold ; QLX 35
      • Rotary head : DHR6 H 45 ; DHR6 H 56
      • Maximum hole depth : 45 m
      • Engine : 287 kW
      • Air capacity (FAD) : 295 l/s

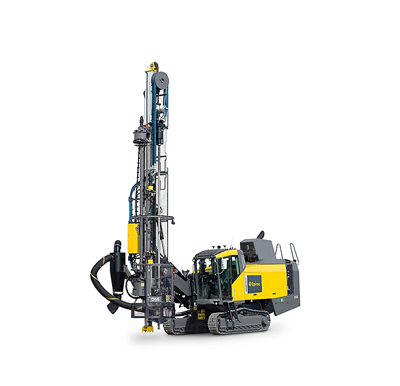

        Smartroc – D55

        • Main application area : Mining ; Quarrying
        • Drilling method : Down-the-hole
        • Hole diameter : 90 mm – 152 mm
        • Cabin : Yes
        • Rock drill/ DTH hammer size : COP 44 Gold ; COP 54 Gold ; QLX 35
        • Rotary head : DHR6 H 45 ; DHR6 H 56
        • Maximum hole depth : 45 m
        • Engine : 328 kW
        • Air capacity (FAD) : 354 l/s

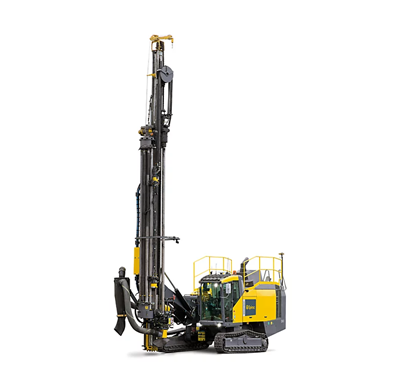

          Smartroc – D60

          • Main application area : Mining ; Quarrying
          • Drilling method : Down-the-hole
          • Hole diameter : 110 mm – 178 mm
          • Cabin Yes
          • Rock drill/ DTH hammer size : 4″ ; 5″ ; 6″
          • Rotary head : DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78
          • Maximum hole depth : 56 m
          • Engine : 354 kW
          • Air capacity (FAD) : 405 l/s

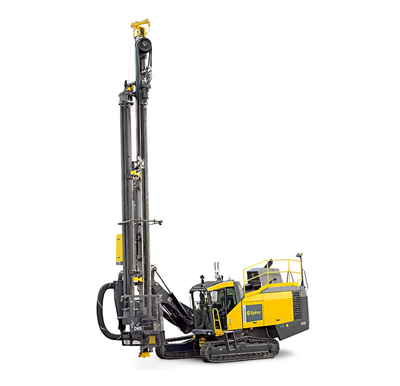

          Smartroc – D65

          • Main application area : Mining ; Quarrying
          • Drilling method : Down-the-hole
          • Hole diameter : 110 mm – 229 mm
          • Cabin Yes
          • Rock drill/ DTH hammer size : 4″ ; 5″ ; 6″ ; 7″
          • Rotary head : DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78
          • Maximum hole depth : 56 m
          • Engine : 403 kW
          • Air capacity (FAD) : 470 l/s

            01

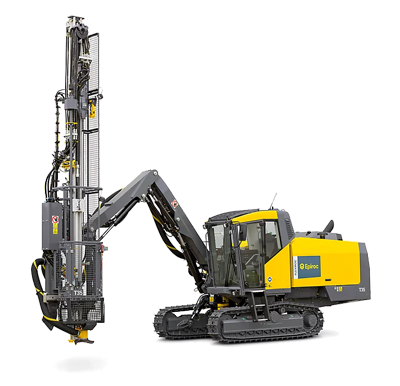

            Smartroc – T35

            • Main application area : Dimension stone industry ; Civil engineering
            • Drilling method : Tophammer
            • Hole diameter : 64 mm – 115 mm
            • Cabin : Yes
            • Rock drill/ DTH hammer size : COP SC19 ; COP SC25-HF
            • Rotary head : N/A
            • Maximum hole depth : 33,5 m
            • Engine : 168 kW
            • Air capacity (FAD) : 127 l/s

              02

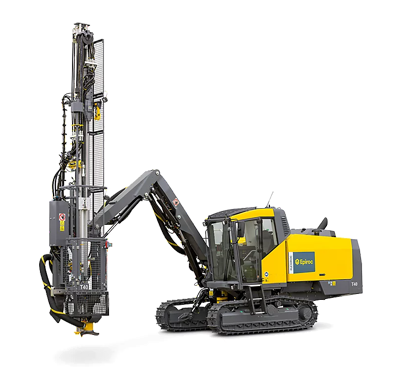

              Smartroc – T40

              • Main application area : Dimension stone industry ; Civil engineering
              • Drilling method : Tophammer
              • Hole diameter : 64 mm – 115 mm
              • Cabin : Yes
              • Rock drill/ DTH hammer size : COP SC25-HE ; COP SC25-HF
              • Rotary head : N/A
              • Maximum hole depth : 33,5 m
              • Engine : 168 kW
              • Air capacity (FAD) : 153 l/s

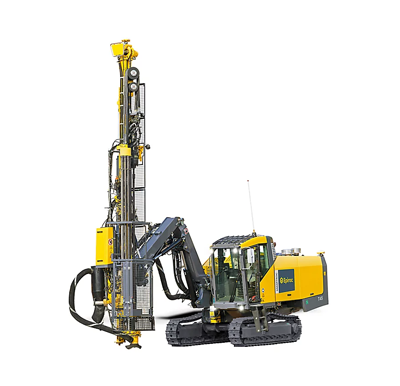

                Smartroc – T45

                • Main application area : Mining ; Quarrying
                • Drilling method : Tophammer
                • Hole diameter : 89 mm – 140 mm
                • Cabin : Yes
                • Rock drill/ DTH hammer size : COP SC25-HE ; COP 3060
                • Rotary head : N/A
                • Maximum hole depth : 36 m
                • Engine : 250 kW
                • Air capacity (FAD) : 223 l/s
