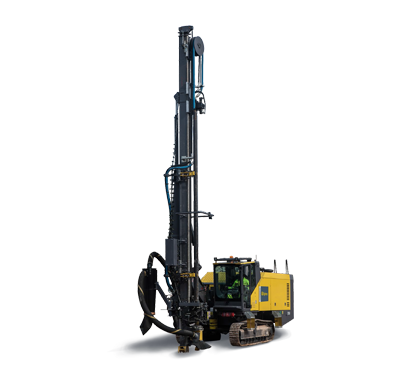

Powerroc – D50

  • Main application area : Mining ; Quarrying
  • Drilling method : Down-the-hole
  • Hole diameter : 90 mm – 152 mm
  • Cabin : Yes
  • Rotary head : DRU 5
  • Engine : 264 kW
  • Air capacity (FAD) : 283.3 l/s

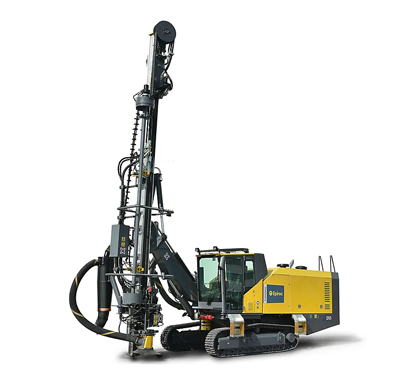

    Powerroc – D55

    • Main application area : Mining ; Quarrying
    • Drilling method : Down-the-hole
    • Hole diameter : 90 mm – 152 mm
    • Cabin : Yes
    • Rock drill/ DTH hammer size : COP 34 ; COP 44 ; COP 54
    • Rotary head : DHR6 H 56 ; DRU 5
    • Maximum hole depth : 30 m
    • Engine : 264 kW
    • Air capacity (FAD) : 272 l/s

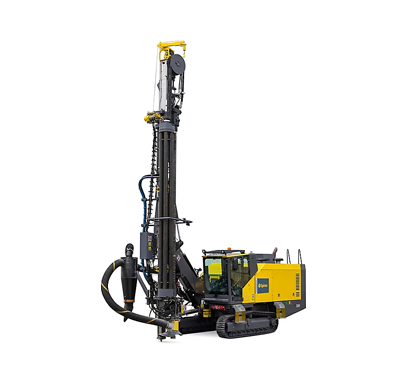

      Powerroc – D60

      • Main application area : Mining ; Quarrying
      • Drilling method : Down-the-hole
      • Hole diameter : 110 mm – 178 mm
      • Cabin : Yes
      • Rock drill/ DTH hammer size : 4″ ; 5″ ; 6″
      • Rotary head : DHR6 H 68
      • Maximum hole depth : 30 m
      • Engine : 379 kW
      • Air capacity (FAD) : 428 l/s

        01

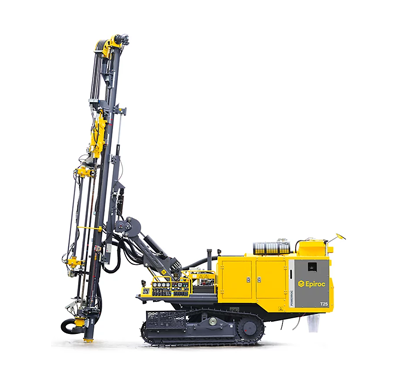

        Powerroc – T25 E

        • Main application area : Quarrying ; Civil engineering
        • Drilling method : Tophammer
        • Hole diameter : 51 mm – 89 mm
        • Cabin : No
        • Rock drill/ DTH hammer size : RD14 S
        • Maximum hole depth : 18,3 m
        • Engine : 119 kW
        • Air capacity (FAD) : 101 l/s

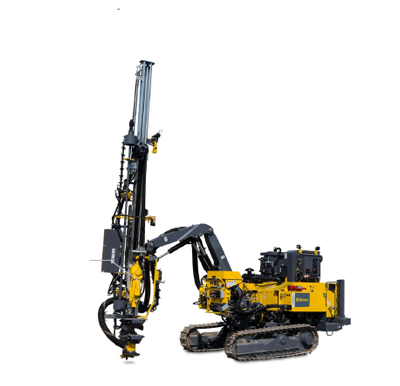

          Powerroc – T30 E

          • Main application area : Quarrying ; Civil engineering
          • Drilling method : Tophammer
          • Hole diameter : 45 mm – 89 mm
          • Cabin : No
          • Rock drill/ DTH hammer size : COP 1640+ ; RD14 S
          • Rotary head : N/A
          • Maximum hole depth : 17,5 m
          • Engine : 116 kW
          • Air capacity (FAD) : 95 l/s

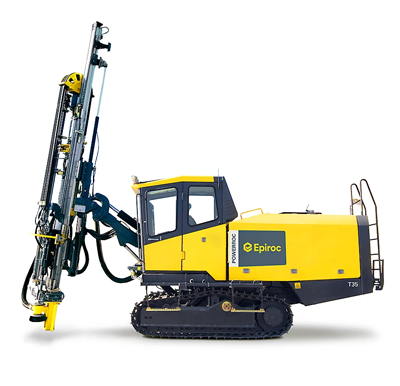

            Powerroc – T35

            • Main application area : Quarrying ; Civil engineering
            • Drilling method : Tophammer
            • Hole diameter : 64 mm – 115 mm
            • Cabin Yes
            • Rock drill/ DTH hammer size : COP 1840+
            • Maximum hole depth : 25 m
            • Engine : 142 kW
            • Air capacity (FAD) : 130 l/s

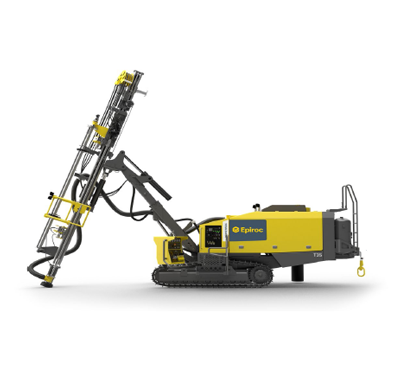

              Powerroc – T35 E

              • Drilling method : Tophammer
              • Hole diameter : 64 mm – 102 mm
              • Cabin : No
              • Rock drill/ DTH hammer size : COP 1840+
              • Maximum hole depth : 25 m
              • Engine : 145 kW
              • Air capacity (FAD) : 132 l/s

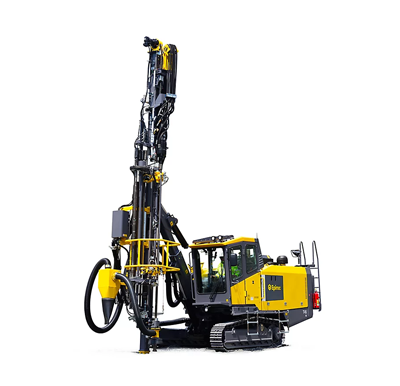

                Powerroc – T45

                • Main application area : Quarrying ; Civil engineering
                • Drilling method : Tophammer
                • Hole diameter : 76 mm – 127 mm
                • Cabin Yes
                • Maximum hole depth : 25 m
                • Engine : 194 kW
                • Air capacity (FAD) : 175 l/s

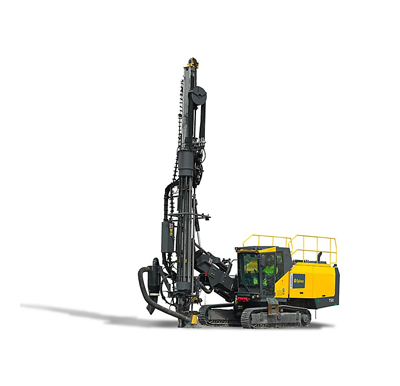

                  Powerroc – T50

                  • Main application area : Quarrying ; Civil engineering
                  • Drilling method : Tophammer
                  • Hole diameter : 102 mm – 152 mm
                  • Cabin : Yes
                  • Rock drill/ DTH hammer size : COP 3060
                  • Maximum hole depth : 35 m
                  • Engine : 261 kW
                  • Air capacity (FAD) : 232 l/s
