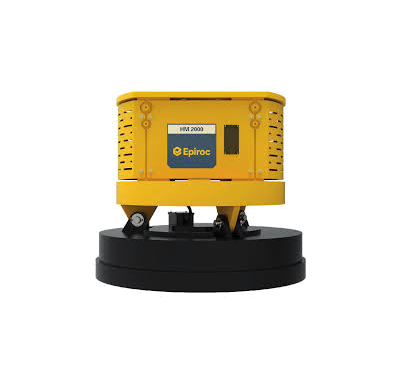

Hydro Magnets

  • HM rangeHM 1500HM 2OOO
  • Carrier weight class12-30 t15-45 t
  • Service weight1550 kg2000 kg
  • Product weight1360 kg1650 kg
  • A (Fixed/movable version)1025/1580 mm1050/1605 mm
  • B280 mm3O5 mm
  • C1060 mm1250 mm
  • Generator power13 kW13 kW
  • Magnet power6 kW9 kW
  • Tearing force11.5 t15.0 t
  • Maximum load5.8 t7.5 t
  • Oil flow rate (generator activation)90—250 l/min90—250 l/min
  • Max. operating pressure (generator activation)350 bar350 bar
  • Oil flow rate (magnet plate activation)20 l/min20 l/min
  • Max. operating pressure (magnet plate activation)50 bar50 bar
