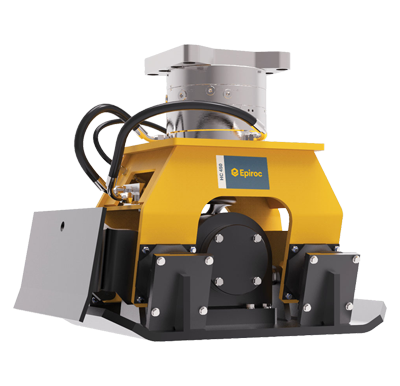

Hydraulic Compactor

    Static version

  • HC rangeHC 150HC 350HC 450HC 850HC 1050
  • Carrier weight class1-3 t3-8 t4-9 t9-20 t20-40 t
  • Service weight160 kg320 kg43O kg88O kg1130 kg
  • Product weight140 kg286 kg400 kg828 kg1044 kg
  • A486 mm623 mm622 mm764 mm786 mm
  • B295 mm475 mm610 mm710 mm864 mm
  • C721 mm846 mm929 mm1272 mm1364 mm
    Rotating version

  • Carrier weight class–4-8 t5-9 t9-20 t20-40 t
  • Service weight–440 kg550 kg1055 kg1400 kg
  • Product weight–408 kg522 kg1003 kg1304 kg
  • A–913 mm912 mm1054 mm1088 mm
  • B–475 mm610 mm710 mm864 mm
  • C–846 mm929 mm1272 mm1364 mm
    static and rotating version

  • Frequency35 Hz35 Hz37 Hz37 Hz37 Hz
  • Force13.7 kN22.6 kN35.3 kN71.6 kN103 kN
  • Compaction coverage0.17 m20.31 m20.40 m20.68 m20.90 m2
  • Oil flow rate30 I/min57 I/min76 I/min114 I/min151 I/min
  • Max. operating pressure150 bar150 barISO bar150 bar150 bar
  • Oil flow rotation–25 l/min25 l/min25 l/min25 l/min
  • Max. operating pressure(rotation)–320 bar320 bar320 bar320 bar
