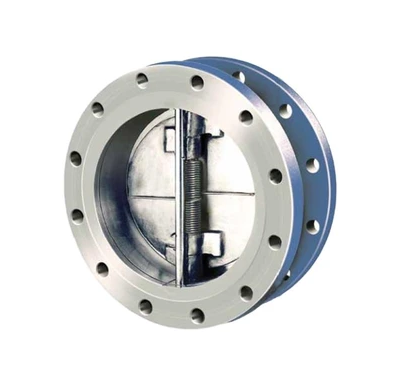

Dual Plate Check Valve – Ecoline Dpcv S
- Nominal diameters : 50 to 600 mm
- Operating pressure : From vacuum to 50 bar
- Temperature range : From -196 °C to 538 °C
- Connection : PN 10, 16, 20, 25, 40
- Class : 125,150, 300, BS / JIS / DIN
- Leakage rate : Metal/elastomer seated to EN 12266-1 leakage rate A and ISO 5208 category A Metal/metal seated to API 598
- Face-to-face length : API 594 except swing check valves with cast iron body DN 65 to 300 mm
