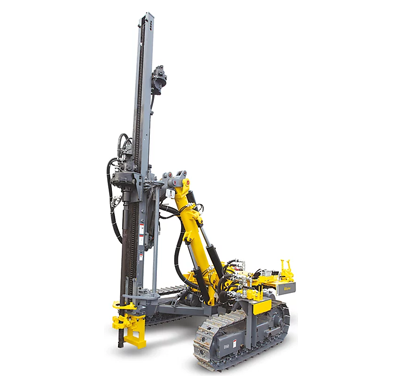

Surface Drilling Rigs Airroc T35/D45/D50(CM 341)
-
Hole range
- AirROC T35 : 64 – 102 mm
- AirROC D45 : 105 – 127 mm
- AirROC D50 : 105 – 140 mm
-
Carrier
- Tramming speed, max : 3.0 km/h
- Track oscillation : ±10°
-
Steel feed
- Feed extension : 1219 mm
- Feed rate, max : 0.25 m/s
- Feed force, max : 21 kN
- Tractive pull, max : 14 kN
- Total length : 5750 mm
- Travel length : 4250 mm
-
Drill tube / Rod size
- Drill rig : Rod / Pipe size
- AirROC T35 : 38, 45 mm
- AirROC D45 : 76 mm
- AirROC D50 : 76, 89, 102 mm
-
Weight
- AirROC T35 / D45 / D50 : 4800 kg
