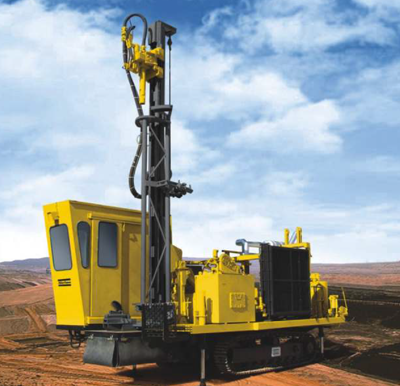

01Blasthole Drills – IBH 10
- Drilling Type : DTH
- Hole Diameter : 114-165 mm
- Pull Down : 4435 kg
- Rotation Torque : 328 kgm
- Drill Pipe : 3.75 m
- Inbuild Drilling : 12ft
- Power : Diesel Power
- Dust Collector Type : Cyclone
- AC Cabin : No
- Angle Drilling : Yes
- Water Injection System : Yes
- Centralised Auto Lubrication : Yes
- Auto Fire Suppression : Yes
- Total weight : 12,500 kg

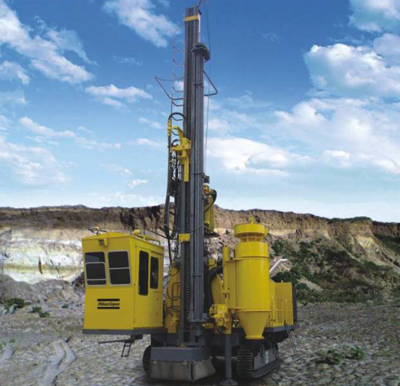

02Blasthole Drills – IDM 30
- Drilling Type : DTH & Rotary
- Hole Diameter : 152-165 mm
- Pull Down : 13,608 kg
- Rotation Torque : 328 kgm
- Drill Pipe : 7.62 m
9.98 m - Inbuild Drilling : 25ft
- Depth Capability : 35ft
- Power : Electric or Diesel
- Dust Collector Type : NVE/Cyclone
- AC Cabin : Yes
- Angle Drilling : Yes
- Water Injection System : Yes
- Centralised Auto Lubrication : Yes
- Auto Fire Suppression : Yes
- Total weight : 28,500 kg

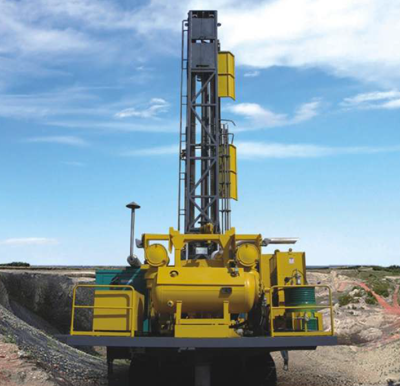

03Blasthole Drills – IDM 45
- Drilling Type : DTH & Rotary
- Hole Diameter : 152-200 mm
- Pull Down : 20,400 kg
- Rotation Torque : 801 kgm
- Drill Pipe : 7.62 m
- Inbuild Drilling : 25ft
- Power : Diesel
- Dust Collector Type : NVE/Cyclone
- AC Cabin : Yes
- Angle Drilling : Yes
- Water Injection System : Yes
- Centralised Auto Lubrication : Yes
- Auto Fire Suppression : Yes
- Total weight : 36,000 kg

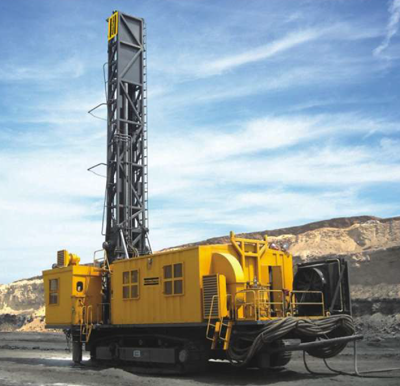

04Blasthole Drills – IDM 70
- Drilling Type : Rotary
- Hole Diameter : 229-270 mm
- Pull Down : 31,751 kg
- Rotation Torque : 1154 kgm
- Drill Pipe : 7.62 m
10.67 m - Inbuild Drilling : 25ft
- Depth Capability : 35ft
- Power : Electric or Diesel
- Dust Collector Type : NVE/Cyclone
- AC Cabin : Yes
- Angle Drilling : Yes
- Water Injection System : Yes
- Centralised Auto Lubrication : Yes
- Auto Fire Suppression : Yes
- Total weight : 67,300 kg
